POCO X3 Pro (vayu) Test Point (EDL Point): A Complete Guide

If you're working with the POCO X3 Pro and need to troubleshoot issues like bricked devices, failed software updates, or FRP locks, understanding the EDL Point (Emergency Download Mode) is critical. This guide will explain what an EDL point is, how to locate it on the POCO X3 Pro, and how to use it effectively.

What is an EDL Point?

EDL, or Emergency Download Mode, is a special mode on Qualcomm-powered devices that allows you to flash firmware or recover your phone when it's completely unresponsive. It bypasses the Android system entirely and connects directly to the hardware through Qualcomm's tools.

The Test Point Method is often used to trigger EDL mode manually when software-based solutions (like ADB or Fastboot) fail. This involves physically shorting two points on the motherboard to force the device into EDL mode.

When Do You Need the POCO X3 Pro Test Point?

Here are some common scenarios where the EDL point is helpful:

Bricked Device: If your POCO X3 Pro is stuck in a boot loop or doesn't power on.
FRP Lock Removal: If you're locked out after a factory reset and can't access your phone due to Google account verification.
Failed Updates or ROM Flashes: When an update or custom ROM flash goes wrong, leaving the device unusable.
IMEI Repair: If the phone has lost its IMEI, the EDL mode can help restore it.

How to Find the EDL Point on POCO X3 Pro

Finding the EDL point requires you to open your phone, so be cautious, as it will void your warranty. Here's how you can locate it:

1. Gather the Necessary Tools

A small Phillips screwdriver to open the phone.
Plastic pry tools to avoid damaging the casing.
Tweezers or a thin wire for shorting the test points.
A Windows PC with Qualcomm drivers installed.
MiFlash Tool or QFIL (Qualcomm Flash Tool).

2. Power Off the Phone

If the phone is still responsive, turn it off. If it's bricked, make sure it's not charging or connected to a PC.

3. Remove the Back Cover

Carefully open the back cover using a plastic pry tool. Start from the bottom edge and work your way around to avoid snapping any clips.
Disconnect the battery connector to ensure no current flows through the device while you're working on the motherboard.

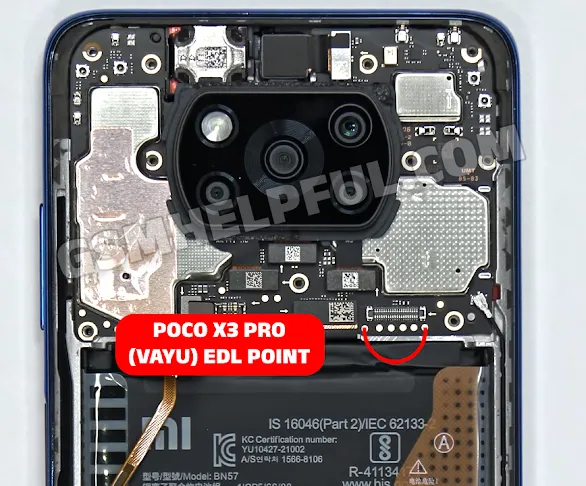

4. Locate the Test Point

The EDL points on the POCO X3 Pro are located on the motherboard. Typically, they are two small contact pads labeled "EDL" or something similar. You can find their exact location by referring to a motherboard diagram for the POCO X3 Pro or using online resources.

How to Trigger EDL Mode Using Test Point

Once you've located the test points, follow these steps:

Connect the Device to Your PC
Use a USB cable to connect the POCO X3 Pro to your PC. Ensure that Qualcomm drivers are already installed on your computer.
Short the Test Points
Using tweezers or a thin wire, short the two test points you located earlier. Hold the connection steady.
Reconnect the Battery (Optional)
In some cases, you might need to reconnect the battery while keeping the test points shorted.
Check the Device Manager
On your PC, open Device Manager and look for "Qualcomm HS-USB QDLoader 9008" under Ports (COM & LPT). This confirms that the device has entered EDL mode.
Flash Firmware or Repair
Use MiFlash Tool or QFIL to flash the official firmware, repair IMEI, or remove FRP lock. Follow the instructions for your chosen tool carefully.

Important Tips and Warnings

Backup Data: EDL mode processes will erase all data on your phone. Unfortunately, if your device is bricked, a backup might not be possible.
Voids Warranty: Opening your phone and using the test point method voids your warranty. Proceed only if you're comfortable taking that risk.
Be Gentle: The motherboard is delicate. Avoid using excessive force or metallic tools that could damage it.
Use Original Firmware: Always flash firmware specific to the POCO X3 Pro to avoid further bricking the device.

Troubleshooting

If your PC doesn't recognize the device in EDL mode:

Ensure Qualcomm drivers are installed correctly.
Try a different USB port or cable.
Double-check the test point connection.

Final Thoughts

The EDL point on the POCO X3 Pro is a lifesaver for fixing critical software issues, but it requires careful handling and a bit of technical know-how. If you're new to this process, take your time, follow the steps, and ensure you have all the tools ready. With patience, you can revive your phone and save yourself a trip to the service center.

If you found this guide helpful or have any questions, drop a comment below! Your feedback is always appreciated.
