POCO F4 (Munch) Test Point

The POCO F4 (Munch) is a powerful device with great hardware, but even the best devices can encounter software-related issues such as bootloops, FRP lock, or an unresponsive state. In such cases, accessing EDL Mode (Emergency Download Mode) via the Test Point method is a lifesaver.

This guide explains how to locate the POCO F4 Test Point, use it to enter EDL Mode, and troubleshoot common problems effectively.

What is an EDL Test Point?

The EDL Test Point is a specific hardware point on the device’s motherboard that, when shorted, forces the phone into Emergency Download Mode. This mode is essential for:

• Flashing stock firmware to unbrick the device.
• Bypassing FRP (Factory Reset Protection) locks.
• Resolving bootloader or software-related issues.

The POCO F4 (Munch) Test Point is compatible with these variants:

• 22021211RG
• 22021211RI

Why Use the Test Point Method?

The EDL Point POCO F4 Test Point is used in the following scenarios:

1. The phone is hard-bricked and doesn’t respond to buttons or charging.
2. The device isn’t detected in Fastboot or Recovery Mode.
3. You need to bypass FRP locks.
4. Flashing firmware requires forced access to EDL Mode.

Prerequisites

Before starting, gather the necessary tools and files:

Tools and Equipment:

1. POCO F4 (Munch): Variants 22021211RG or 22021211RI.
2. A precision screwdriver to open the device.
3. Tweezers or a conductive tool to short the Test Points.
4. USB cable and a PC with Qualcomm USB drivers installed.
5. Flashing tools like Mi Flash Tool or QFIL.
6. The appropriate stock firmware for your specific variant.

Steps to Access EDL Mode Using POCO F4 Test Point

1. Power Off the Device

• Ensure the phone is completely powered off. If it’s stuck, press and hold the power button until it shuts down.

2. Disassemble the Phone

• Carefully remove the back cover of the device using a plastic pry tool.
• Unscrew the protective shield covering the motherboard.

3. Locate the Test Points

• Find the EDL Point munch Test Point on the motherboard.
• These Test Points are situated near the battery connector.

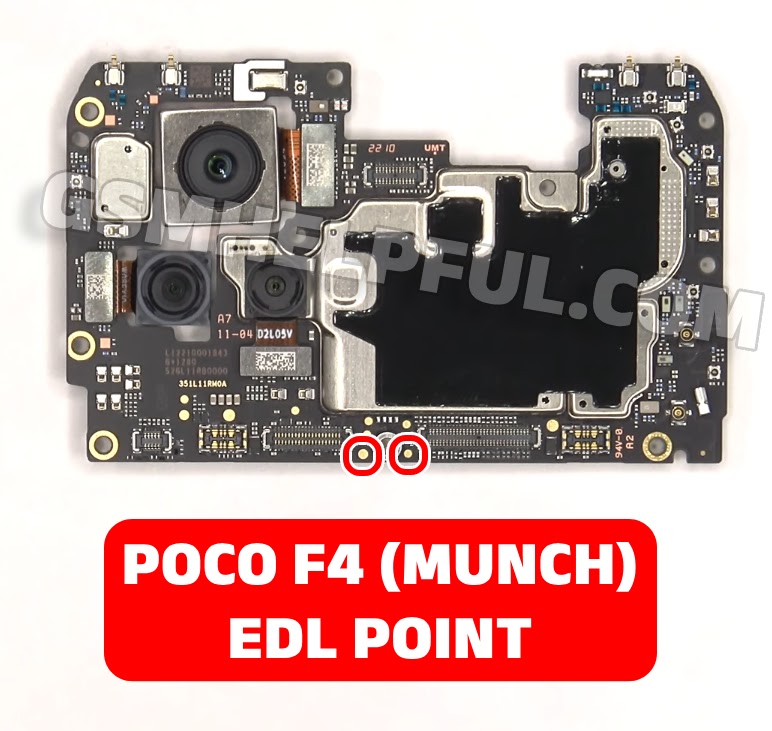

• Refer to the image below for precise positioning (Insert Picture Here).

4. Short the Test Points

• Use tweezers or any conductive tool to short the two Test Points.
• While holding the Test Points shorted, connect the device to your PC using a USB cable.

5. Verify EDL Mode

• On your PC, open Device Manager and confirm the device is recognized as Qualcomm HS-USB QDLoader 9008.

6. Flash Firmware or Perform Repairs

• Use tools like Mi Flash Tool or QFIL to flash the stock firmware or bypass FRP locks.

Important Tips

1. Use Correct Firmware
   Always download the firmware corresponding to your device variant (22021211RG or 22021211RI).

2. Handle Hardware Carefully
   Be gentle while opening the phone and working on the motherboard to prevent hardware damage.

3. Ensure Battery Level
   The phone’s battery should be charged to at least 50% to avoid interruptions during flashing.

4. Install Drivers
   Make sure Qualcomm USB drivers are properly installed on your PC for successful EDL Mode detection.

Topic Covered:

1. EDL Point POCO F4 Test Point
2. EDL Point munch Test Point
3. EDL Point 22021211RG Test Point
4. EDL Point 22021211RI Test Point

Conclusion

The POCO F4 (Munch) Test Point method is a reliable solution to unbrick your device, bypass FRP locks, or flash firmware. By following the step-by-step guide and using the accompanying images, you can safely access EDL Mode and resolve software issues on your device.

Remember to be cautious while handling the hardware and ensure you have the correct tools and drivers ready. With this guide, troubleshooting your POCO F4 should be straightforward and hassle-free.
