How to Unlock Pattern & Frp Lock on VIVO v21e 5G

Unlocking the pattern and FRP lock on your VIVO V21e 5G can be a straightforward process with the right tools and steps. This guide will walk you through the process and provide troubleshooting tips if you encounter connectivity issues.

What is FRP Lock?

Factory Reset Protection (FRP) is a security feature on Android devices that prevents unauthorized access after a factory reset. When a device is reset, the FRP lock requires the Google account credentials previously associated with the device to regain access.

Why Unlock Pattern & FRP Lock?

You might need to unlock the pattern and FRP lock on your VIVO V21e 5G if you forget your device password or want to reset your phone to its factory settings without restrictions. Unlocking these locks will allow you to regain full access to your device.

Prerequisites

Before proceeding with the unlocking process, ensure you have the following:

• A Windows computer
• USB cable compatible with VIVO V21e 5G
• The Unlock Tool installed on your computer
• VIVO V21e 5G Mobile USB Driver

Step-by-Step Guide to Unlock Pattern & FRP Lock on VIVO V21e 5G

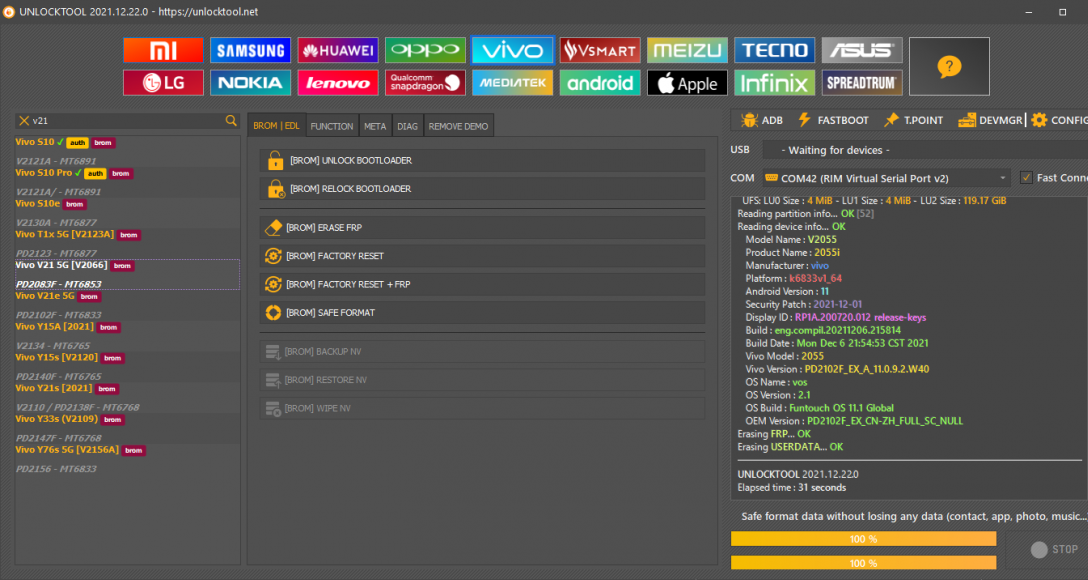

Step 1: Open the Unlock Tool

• Launch the Unlock Tool on your computer.
• Ensure the software is updated to the latest version for optimal compatibility and performance.

Step 2: Go to the VIVO Tab

• Within the Unlock Tool, navigate to the VIVO tab.
• This section of the tool is specifically designed to handle VIVO devices, ensuring you have the correct options for your phone model.

Step 3: Select Model VIVO V21 5G [V2066]

• In the model selection dropdown, choose the VIVO V21 5G [V2066].
• This ensures the tool applies the correct settings and operations for your device model.

Step 4: Select BROM | EDL

• Choose the option for BROM | EDL mode.
• This mode allows the tool to access the device's firmware and perform necessary operations to unlock the pattern and FRP lock.

Step 5: Click on [BROM] FACTORY RESET + FRP

• Once you have selected BROM | EDL, click on the option labeled [BROM] FACTORY RESET + FRP.
• This will initiate the process to reset the device and remove the FRP lock.

Step 6: Press and Hold Volume Up + Down and Insert USB Cable to Phone

• While holding the Volume Up and Down buttons, connect your VIVO V21e 5G to the computer using a USB cable.
• This combination of buttons will enable the device to enter the required mode for the Unlock Tool to work.

Step 7: Wait Until Completed

• Allow the Unlock Tool to complete the process.
• Once finished, your VIVO V21e 5G will be reset, and the pattern and FRP lock will be removed.

Troubleshooting: VIVO V21e 5G Not Connecting with Tool

If your VIVO V21e 5G is not connecting with the Unlock Tool, follow these troubleshooting steps:

1. Check USB Cable and Port:

   • Ensure that the USB cable is functioning correctly and try a different port on your computer.

2. Install VIVO USB Drivers:

   • Make sure the latest VIVO USB drivers are installed on your computer. This ensures that the device can communicate effectively with the Unlock Tool.

3. Restart Computer and Device:

   • Restart both your computer and the VIVO V21e 5G to refresh the connection.

4. Use a Different USB Cable:

   • Sometimes, a faulty USB cable can prevent a proper connection. Try using a different cable to rule out this possibility.

5. Disable Antivirus/Firewall:

   • Temporarily disable any antivirus or firewall software that may be blocking the connection between the device and the Unlock Tool.

6. Check BROM Mode Activation:

   • Ensure that you are correctly pressing the Volume Up and Down buttons while connecting the device to enter BROM mode.

By following these steps and troubleshooting tips, you should be able to unlock the pattern and FRP lock on your VIVO V21e 5G successfully. If you continue to experience issues, consider seeking professional assistance to ensure the process is completed correctly.
